Configure OneLogin SSO with Engagedly

Table of contents

  1. Introduction
  2. Configure SAML SSO in Engagedly
  3. Create the application in OneLogin
  4. Configure IdP details in OneLogin
  5. Add IdP details to Engagedly

1. Introduction

OneLogin is a cloud-based identity and access management (IAM) platform that helps organizations securely manage user authentication and access to applications. It centralizes identity management and enables secure access across cloud and on-premises environments.

Admins can integrate OneLogin with Engagedly to enable Single Sign-On (SSO), allowing employees to securely access Engagedly using their OneLogin credentials. This integration helps admins centralize authentication, strengthen security, reduce password-related issues, and simplify user and access management across the organization.

📒Note: Admins and users with integration permissions are authorized to configure this integration.

For more information about SSO integrations, refer to the Overview of integrations.

📒Note: This document covers the integration setup for both Tangerine (V2) and Indigo (V3). Screenshots are captured from Indigo (V3), so the user interface may vary slightly in Tangerine.

Prerequisites
  • Active subscription to both OneLogin and Engagedly.
  • Admin access to both OneLogin and Engagedly.

2. Configure SAML SSO in Engagedly

Navigate to Settings > Integrations.

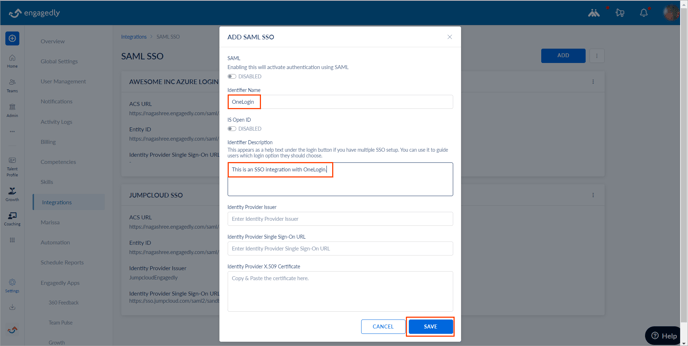

  1. In the "SSO" field, click SAML Single Sign On.
  2. Click ADD at the top right.
  3. Enter an identifier name and click SAVE.

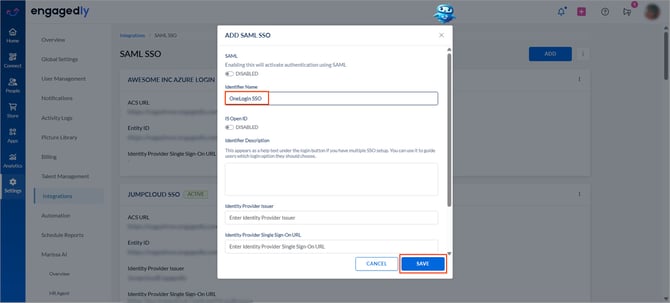

Configure OneLogin SSO with Engagedly1

Engagedly generates the ACS URL and Entity ID.

3. Create the application in OneLogin

  1. Log in to the OneLogin Admin Portal.

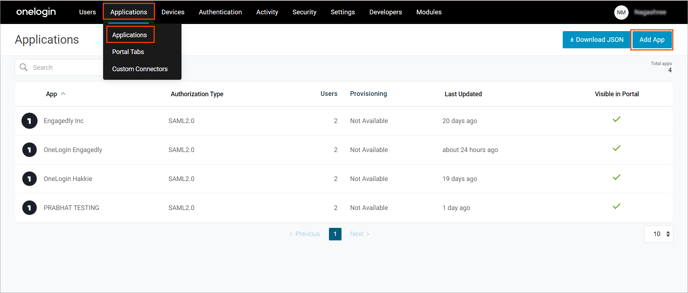

  2. At the top, select Applications > Applications.
  3. Click Add App at the top right.

OneLogin2

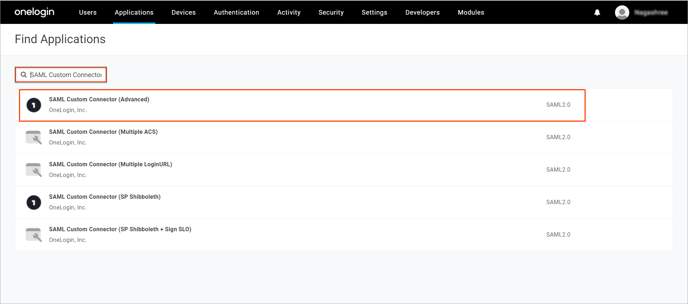

     4.  Search for SAML Custom Connector (Advanced) and select SAML Custom Connector (Advanced) - SAML 2.0.

OneLogin4

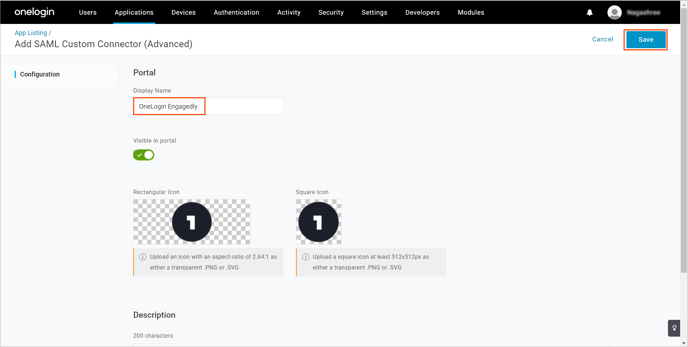

     5.  Enter the display name as required and click Save at the top right.

     6.  (Optional) Upload your organization’s logo and enter the description.

OneLogin3

You are redirected to the “Configuration” tab.

4. Configure IdP details in OneLogin

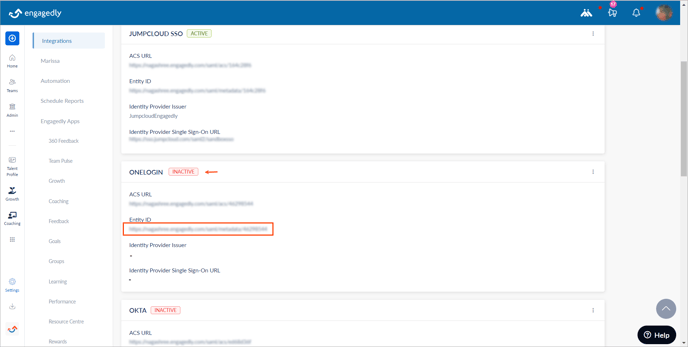

  1. Copy the following values from Engagedly and paste them into the corresponding fields in OneLogin.
Engagedly field OneLogin field (to the Configuration tab)

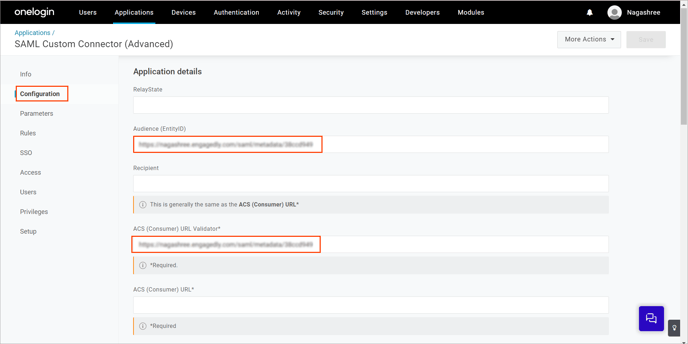

Entity ID

  • Audience (EntityID)

  • ACS (Consumer) URL Validator*

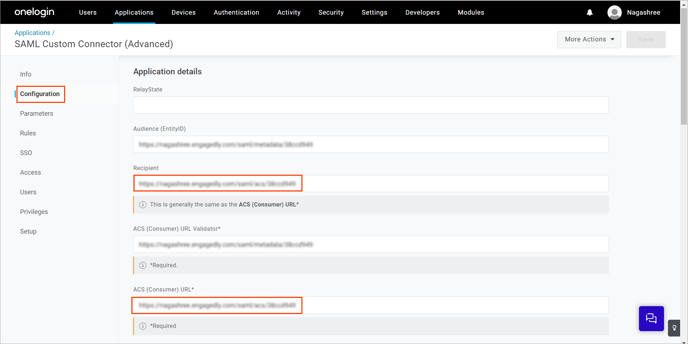

Acs URL

  • Recipient

  • ACS (Consumer) URL*

5. Add IdP details to Engagedly

  1. Copy the following values from OneLogin and paste them into the corresponding fields in Engagedly.

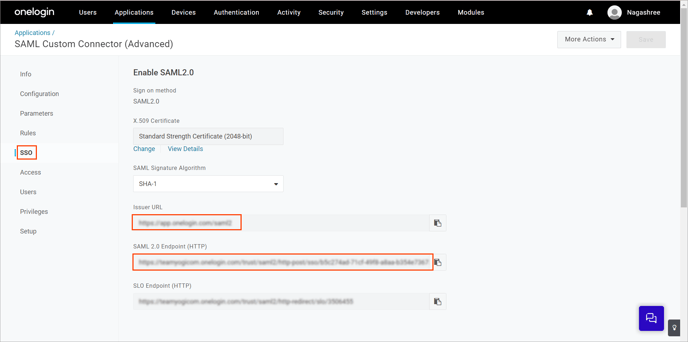

OneLogin field (from the SSO tab) Engagedly field
Issuer URL Identity Provider Issuer
SAML 2.0 Endpoint (HTTP) Identity Provider Single Sign-On URL

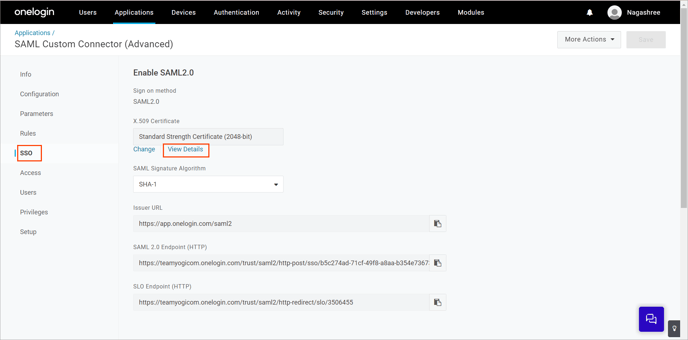

     2.  In the SSO tab, click View Details, and then click Download to download the certificate.

OneLogin13

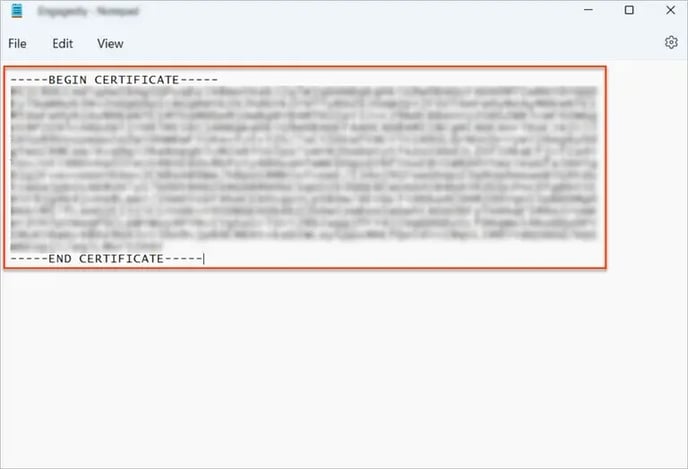

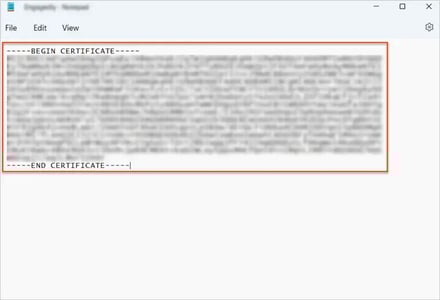

     3.  Open the downloaded certificate in a text editor and copy the entire certificate, including the lines ----- BEGIN CERTIFICATE-----and----- END CERTIFICATE-----.

OneLogin9

     4.  Paste the certificate content into the ”Identity Provider X.509 Certificate” field in Engagedly.

     5.  (Optional) Click Test Connection to verify the setup.

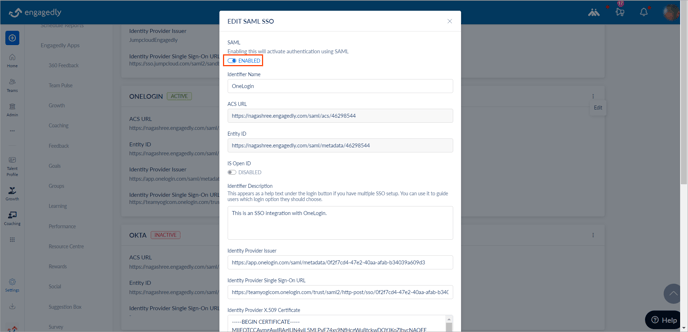

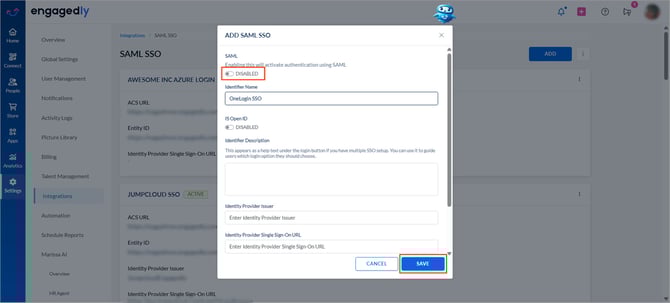

     6.  Use the toggle to activate authentication using SAML and click SAVE.

Configure OneLogin SSO with Engagedly last

You have successfully configured OneLogin SSO with Engagedly.

After integration, assign the application to users or groups in OneLogin.

After assigning the application in OneLogin and adding users to Engagedly, users can access Engagedly using single sign-on (SSO).
